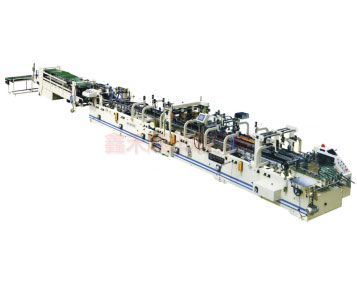

main feature:
1. Use reinforced transmission mechanism and upper and lower drive transmission structure to ensure correct and stable conveying;
2. Equipped with a paper corrector to prevent the paper from being skewed during the paper feeding process, and also to prevent errors caused by the incorrect feeding of the paper during the folding process;
3. This machine is equipped with a water jet crimping device to prevent factors such as the inability to properly glue the box due to paper drying or poor crimping;
4. Equipped with a servo corrector, the paper can be corrected again when the paper cannot be completely aligned in the folding process, and the quality of use is more perfect;
5. The use of man-machine PLC operating system, remote diagnosis and maintenance system remote operating system, fully meet the needs of humanized operation;
6. The conveying table adopts special materials, adjusts the pressure by air pressure, and is equipped with a sponge belt to ensure that the new product is perfect.
Technique Parameter
model | Paper | fast speed | Power required | Machine size | Total machinery |
XHS一580PC | Paper jamζB, E wave/CardboardζB, E flute | 200 | 8.6 | 9x1.1 x1.35 | 5.5t |
XHS一800AC | Paper jamζB, E wave/CardboardζB, E flute | 200 | 9.4 | 9.6x1.6x1.7 | 6.5t |
XHS一800PC | Paper jamζB, E wave/CardboardζB, E flute | 200 | 9.4 | 12x1.6x1.7 | 7.3t |
XHS一980AC | Paper jamζB, E wave/CardboardζB, E flute | 200 | 9.4 | 9.6x1.7x1.7 | 6.5t |
XHS一980PC | Paper jamζB, E wave/CardboardζB, E flute | 200 | 13.2 | 12x1.7x1.7 | 7.5t |
XHS一1050PC | Paper jamζB, E wave/CardboardζB, E flute | 200 | 13.2 | 14x1.8x1.7 | 9.5t |
XHS一1380AC | Paper jamζB, E wave/CardboardζB, E flute | 200 | 15 | 14.6x2.1x1.7 | 9.5t |
XHS一1380PC | Paper jamζB, E wave/CardboardζB, E flute | 200 | 15 | 14.6x2.1x1.7 | 9.5t |
XHS一1000SL | Paper jamζB, E wave/CardboardζB, E flute | 200 | 20 | 12x1.77x1.77 | 9.4t |
